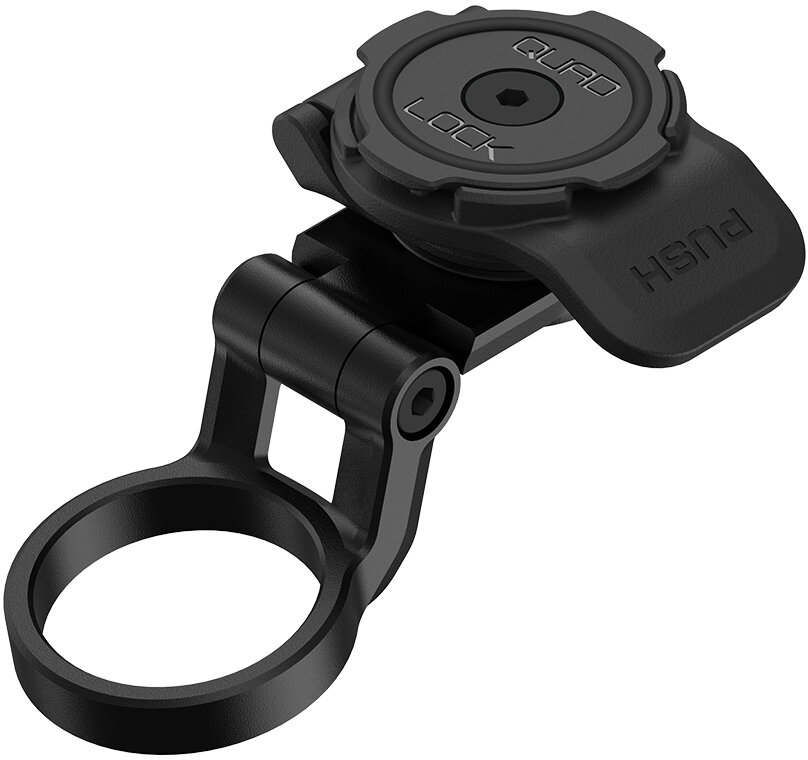

Quad Lock Stem Cap Mount Adjustable

FEATURES
• Secure, patented dual-stage locking mount.
• Fits cleanly above the stem, held securely by the stem cap.
• Sleek appearance: short lever head in black, incl. black hardware, and matte black
anodised aluminium base.
• Premium materials: lightweight 7075-T6 aircraft-grade aluminium, forged and CNC-
machined base.
• Hinged design fits upright stem angles up to +55°.
• Dual-sided, reversible design offers versatility to fit crowded cockpits.

ADJUSTABILITY
Adjustable hinge fits upright stem angles to +55°

COMPATIBILITY
Compatible With:
• Fits most common circular stem size diameter Ø28.6mm (1-?”)
• All Quad Lock Cases & Universal Adaptors
• Quad Lock Coloured Levers
Not Compatible With:
• Proprietary stems with non-standard, non-round shaped stem caps.
• Forks with smaller Ø1 inch, or larger 1 ¼ inch, Ø1.5 inch steerer tubes.
• Stem caps with internal cable routing (brake and / or gear).
• Quad Lock Action Cam/Light Adaptor

INCLUDED IN BOX
1x Base and Offset Arm with 360™ Index feature (hinged design).
1x dual-stage 360™ Short Lever Head (black lever and hardware).
1x hex key - 3mm

MATERIALS
7075-T6 aluminium; forged and precision machined base.

MEASUREMENTS
L85.5mm x W52mm x H39.1mm

PRODUCT WEIGHT
0.042 kg
